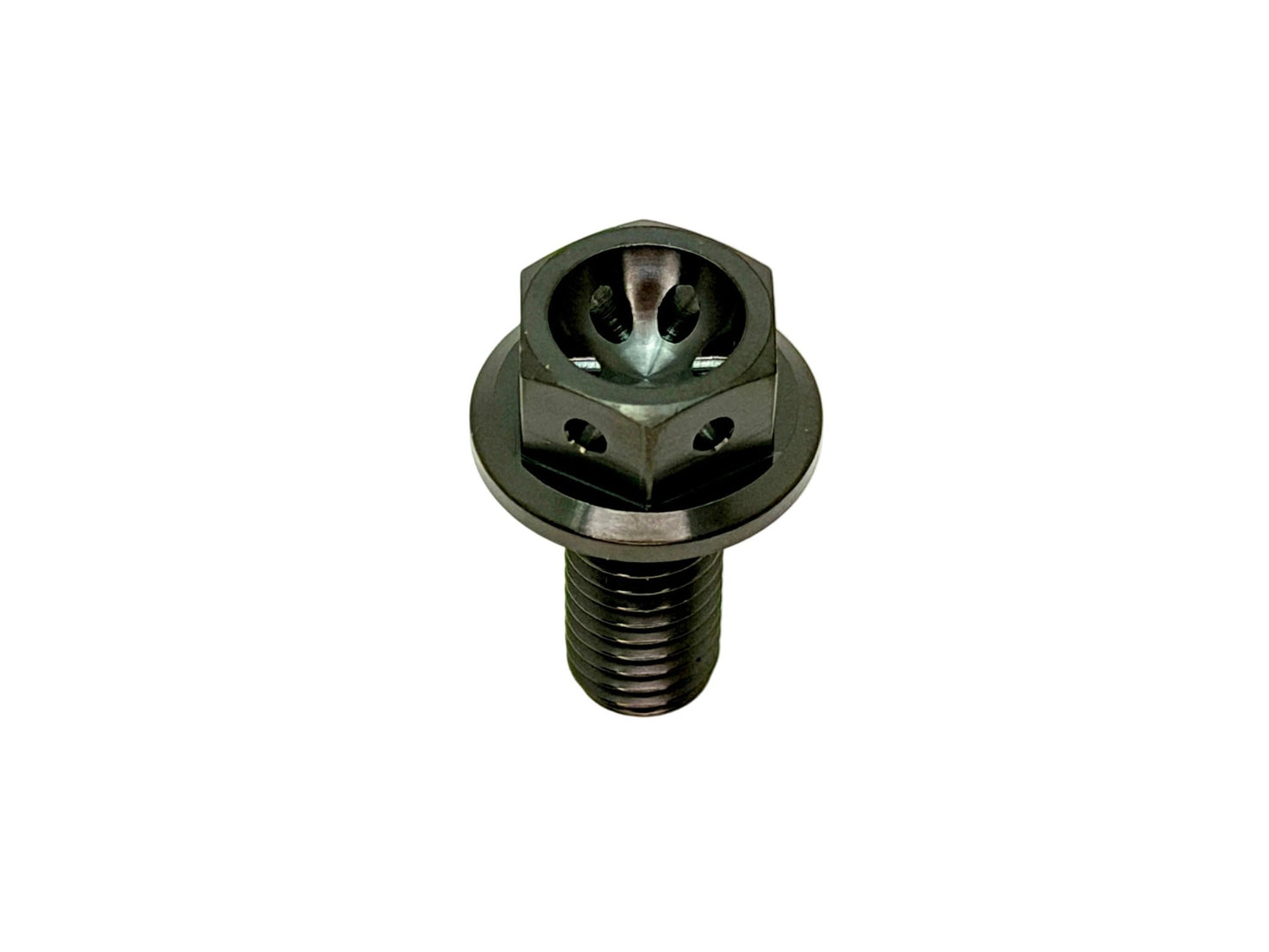

Titanium M8x1.25x18mm Hex Flange Bolt Drilled Head (Aerospace Grade)

Precision-machined Titanium Grade 5 (6AL-4V) M8x1.25x18mm Hex Flange Bolt with Drilled Head — aerospace-grade hardware sold individually. Built to DIN 6921 spec with rolled threads and an anodized or PVD-coated finish. The drilled head allows safety wire installation for competition or high-vibration applications.

Specifications

• Thread Diameter: M8 (8mm)
• Thread Pitch: 1.25mm
• Total Length: 18mm (Full Thread)
• Hex Size: 12mm socket
• Flange Diameter: 17mm
• Head Height: 8mm
• Standard: DIN 6921
• Material: Titanium Grade 5 6AL-4V (Aerospace Grade)

Key Features

• Drilled Head: Safety wire compatible — ideal for competition and high-vibration builds
• Rolled Threads: Greater fatigue strength and longer service life than cut threads
• Anodized / PVD Coated: Multiple color options — corrosion-resistant finish
• 45% Lighter Than Steel: Same strength at a fraction of the weight
• Increased Corrosion Resistance: Won’t rust or seize
• Ships same day from Chicago

Includes

• (1) Titanium M8x1.25x18mm Hex Flange Bolt Drilled Head
