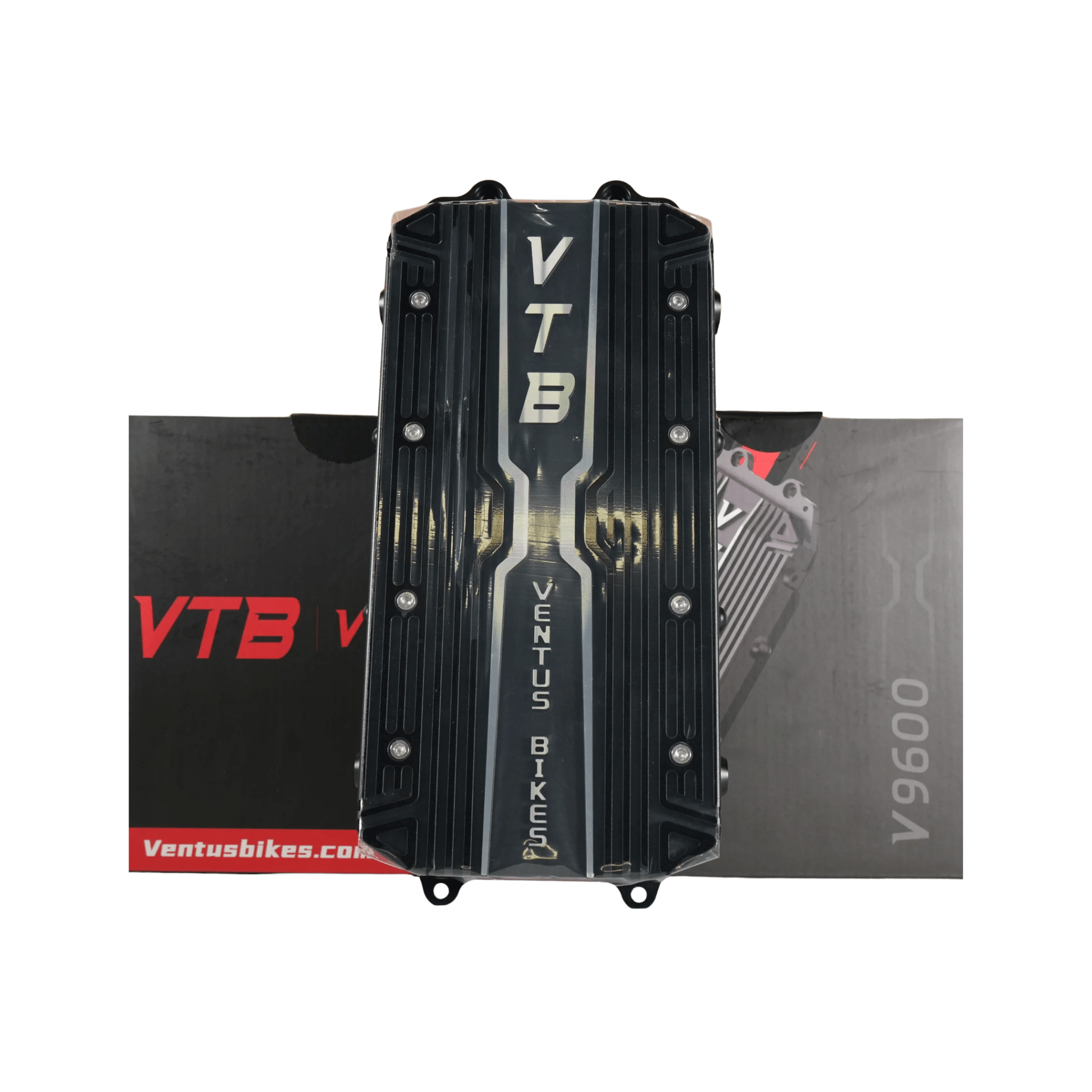

Ventus V9600 Controller

This listing is for the controller only. You must purchase the harness for your specific bike, located HERE.

VTB LCD Screen: Included
VTB Hand Controls: Included

Description

Controller Specification:

Maximum Bus Phase Current: 500A/960A
Peak Power: 44kW
Operating Temperature Range: -25°C to 80°C
Sinusoidal Vector Control
Voltage Range: 30V-99V (Limit), 48V-84V (Operating)

Controller Features:

• Fine-tunable throttle response
• High-reliability redundant design
• Adaptive compensation for low throttle at low battery levels
• 3 power modes, 5 riding modes for quick switching
• 5 regenerative braking modes for quick switching
• Linear regenerative electronic braking, energy-saving up to 30%
• Customizable super-linear throttle handle
• Customizable throttle curve, burst power, high-speed power compensation, speed percentage
• Compatible with mainstream models including Light Bee, Ultra Bee, TALARIA Sting, TALARIA X3, 79 bike Falcon
• Full-function APP, available for both Apple and Android devices

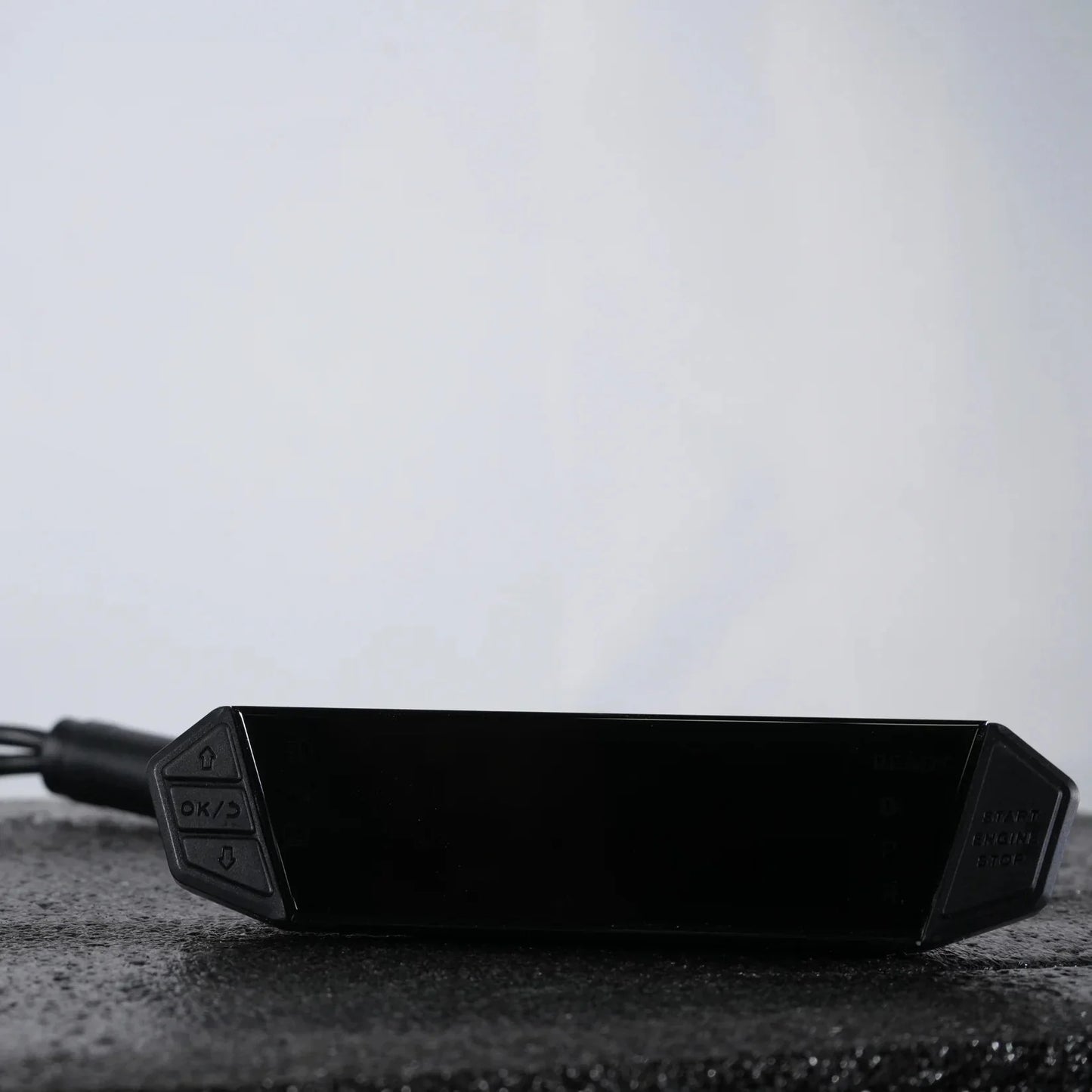

• High-resolution color screen instrument panel
• Sensory unlocking
• Bluetooth binding with battery BMS for the instrument panel
• CNC radiator
• IP67 waterproof for the entire system

Package Contents:

Controller x1
Color Screen Instrument Panel x1
Instrument Panel Bracket x1
Switch Assembly x1
Thumb Throttle x1
Vehicle-specific Adapter Cable x1

Compatible Motors:

VTB Beast 28kW
VTB Beast 35kW
Sur-Ron Light Bee Factory
Sur-Ron Ultra Bee Factory
Talaria Sting Factory
79 Bike Falcon Factory
QS165
LTXS
Sotion FW01
Sotion Talaria

Compatible Batteries:

Series 16-22, compatible with various models of both factory and modified batteries.

This listing is for controller only. You must purchase the harness for your specific bike, located HERE.
