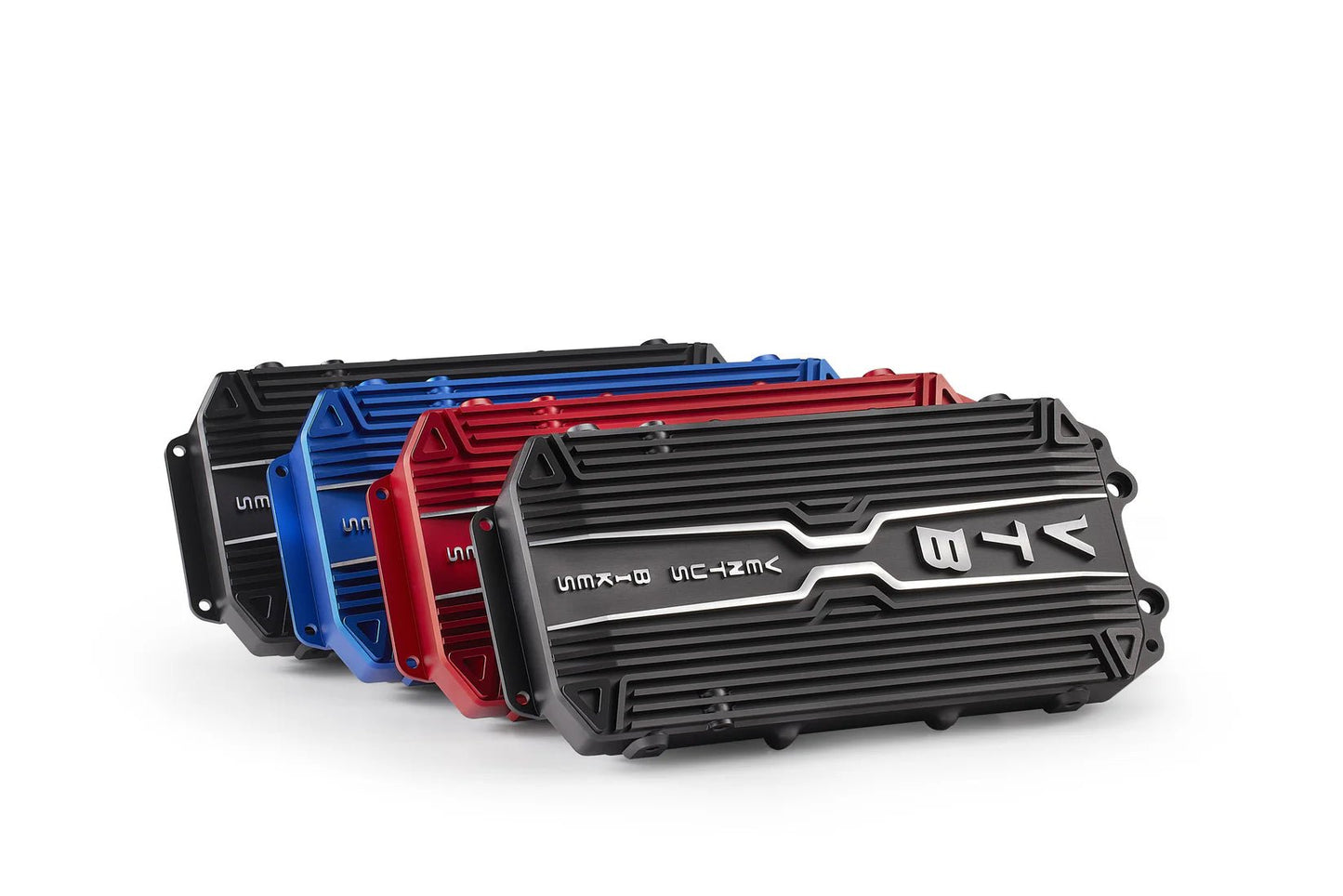

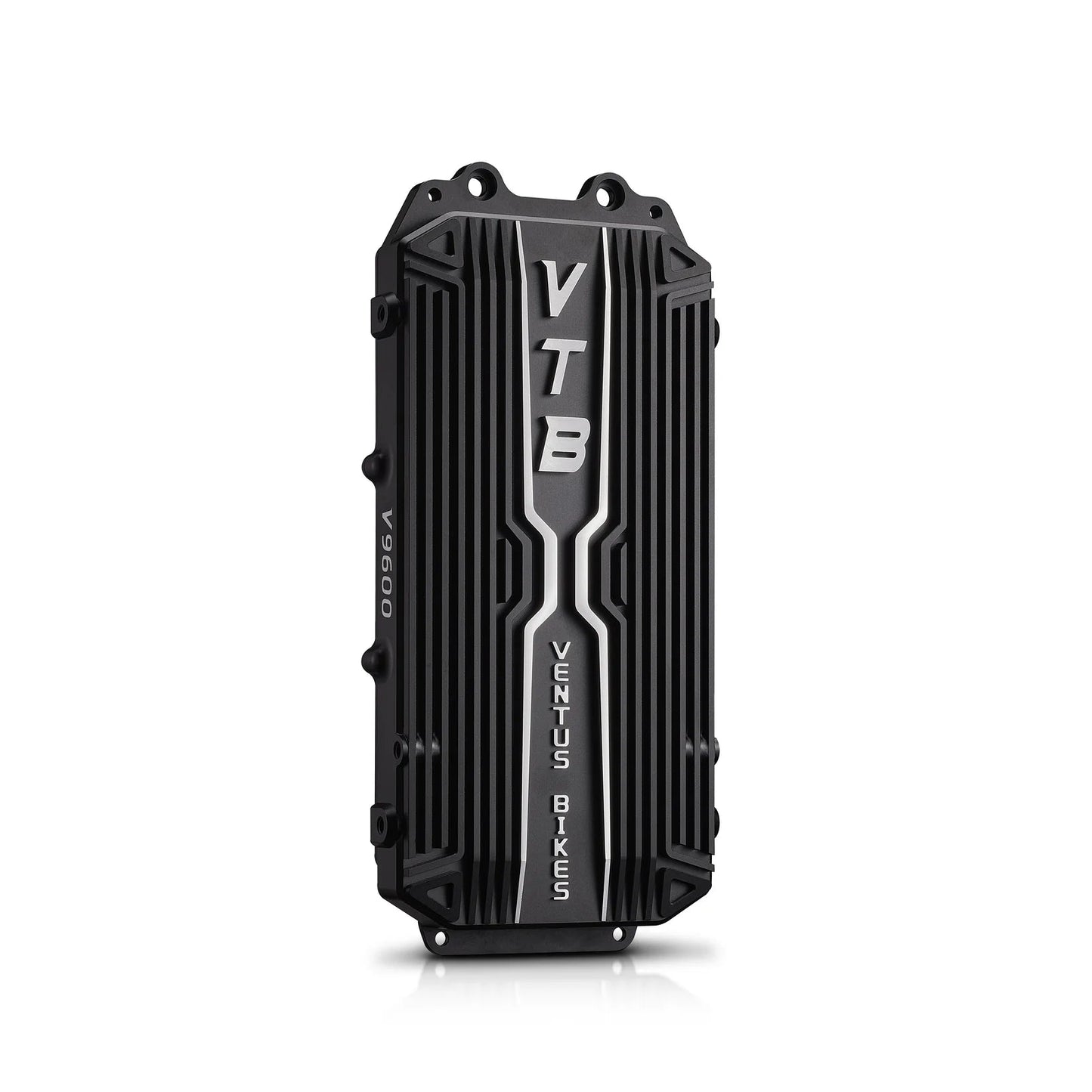

Ventus VTB V9600 Controller for all E-Moto

Description

Controller Specification:

Maximum Bus Phase Current: 500A/960A
Peak Power: 44kW
Operating Temperature Range: -25°C to 80°C
Sinusoidal Vector Control
Voltage Range: 30V-99V (Limit), 48V-84V (Operating)

Controller Features:

• Fine-tunable throttle response
• High-reliability redundant design
• Adaptive compensation for low throttle at low battery levels
• 3 power modes, 5 riding modes for quick switching
• 5 regenerative braking modes for quick switching
• Linear regenerative electronic braking, energy-saving up to 30%
• Customizable super-linear throttle handle
• Customizable throttle curve, burst power, high-speed power compensation, speed percentage
• Compatible with mainstream models including Light Bee, Ultra Bee, Talaria Sting, Talaria XXX, 79-Bike Falcon, E-Ride Pro
• Full-function APP, available for both Apple and Android devices
• High-resolution color screen instrument panel
• Sensory unlocking
• Bluetooth binding with battery BMS for the instrument panel
• CNC radiator
• IP67 waterproof for the entire system

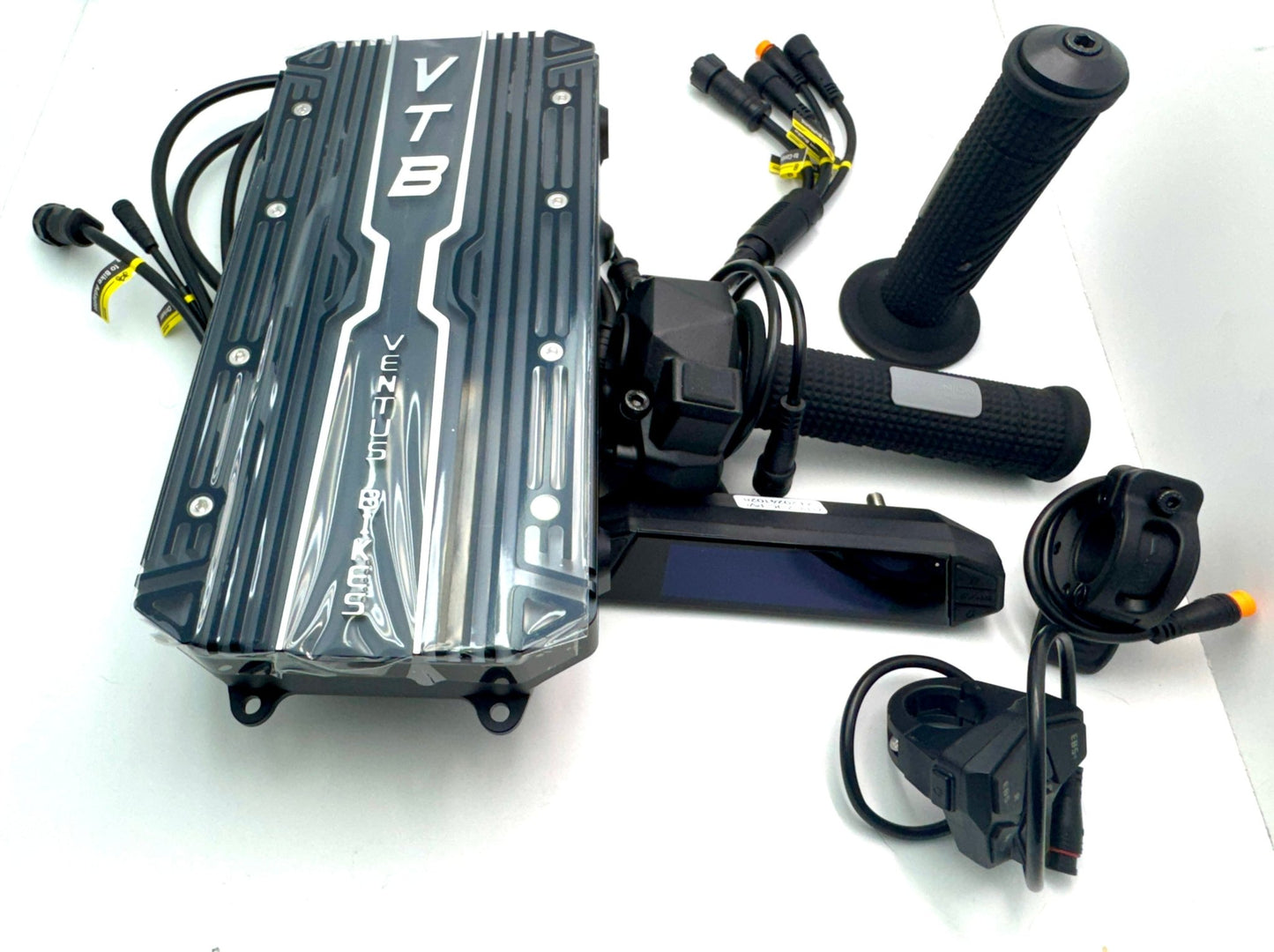

Package Contents:

Controller x1

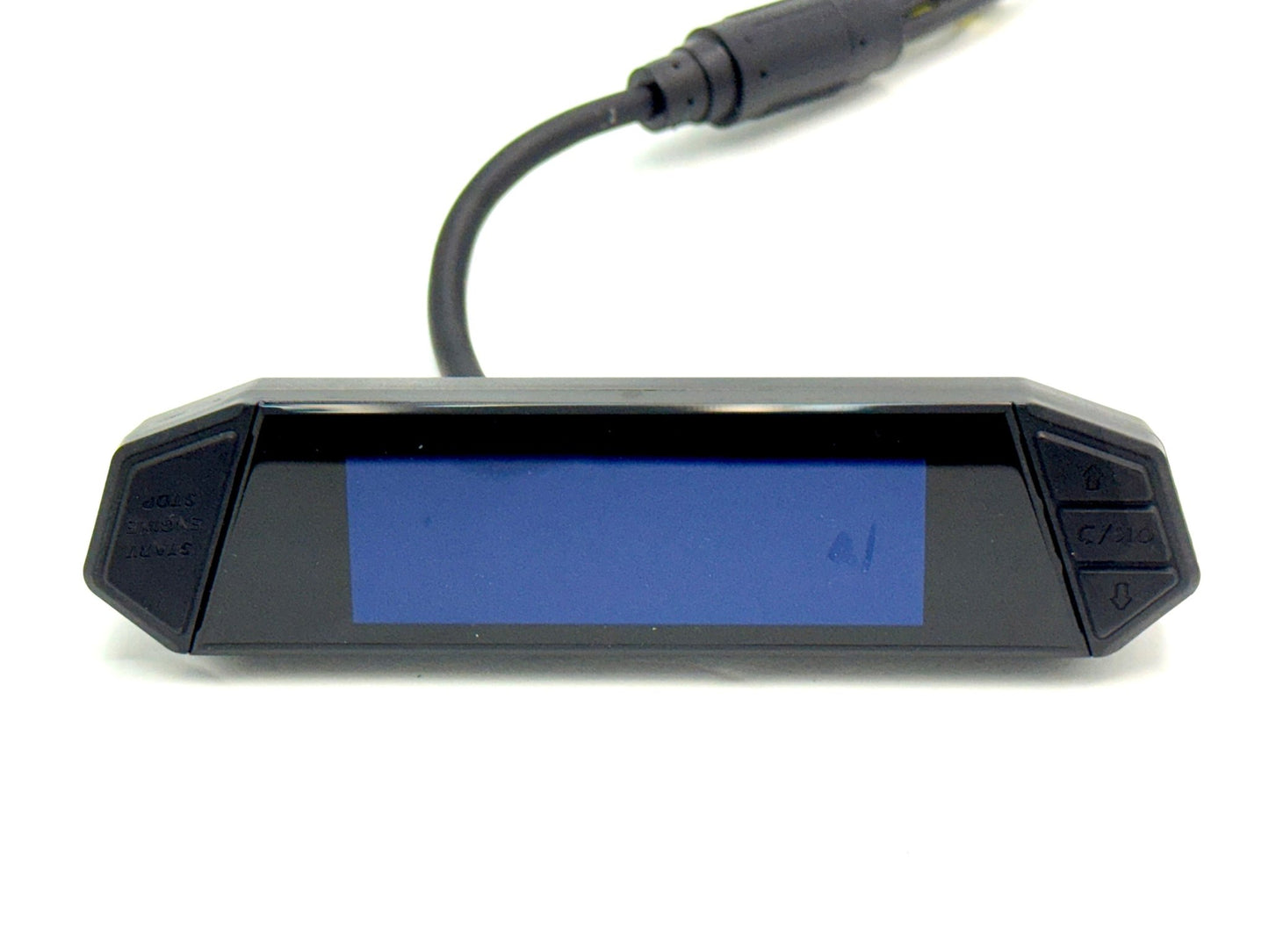

Color Screen Instrument Panel x1
Instrument Panel Bracket x1
Throttle Handle x1

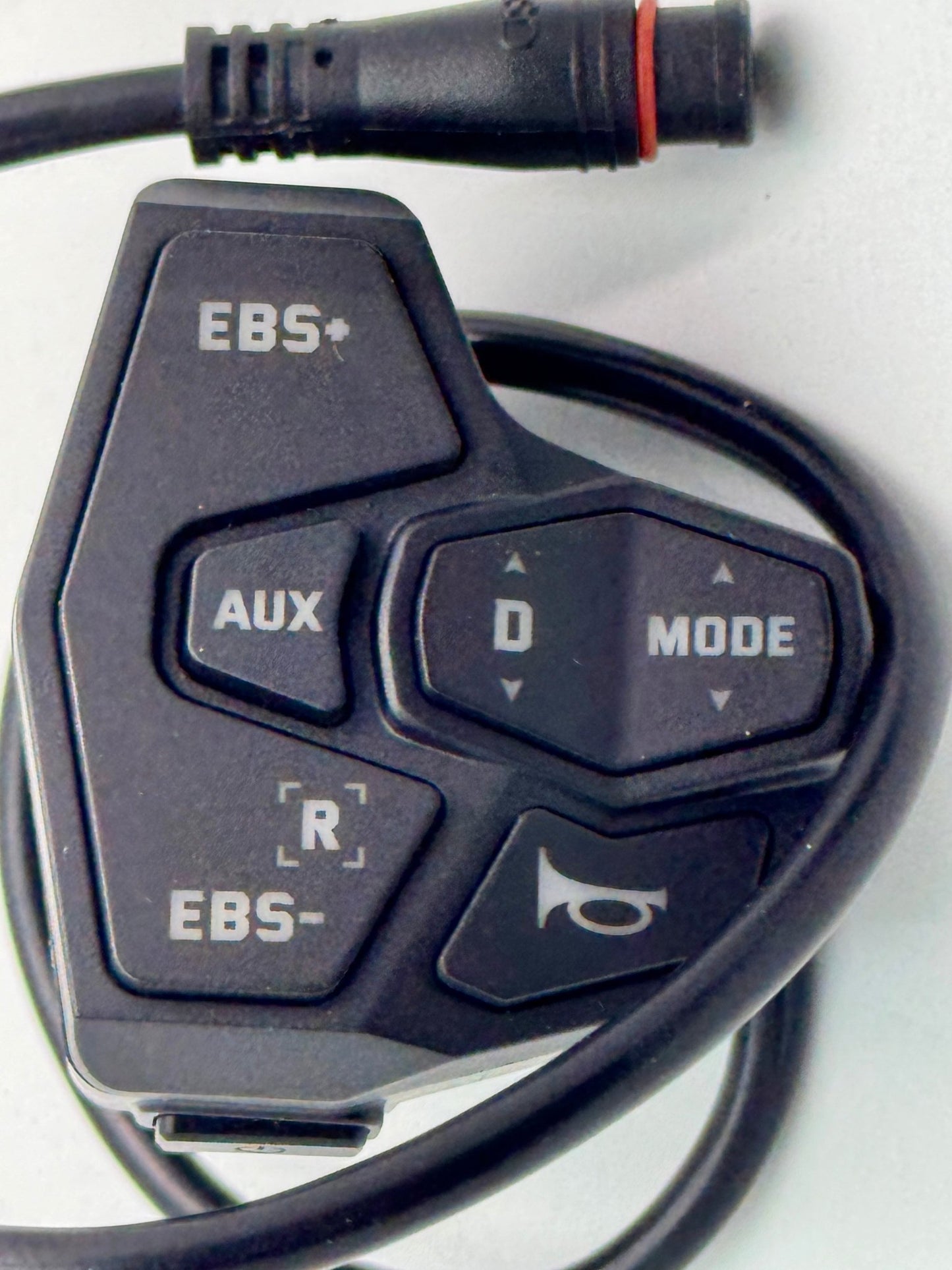

Switch Assembly x1

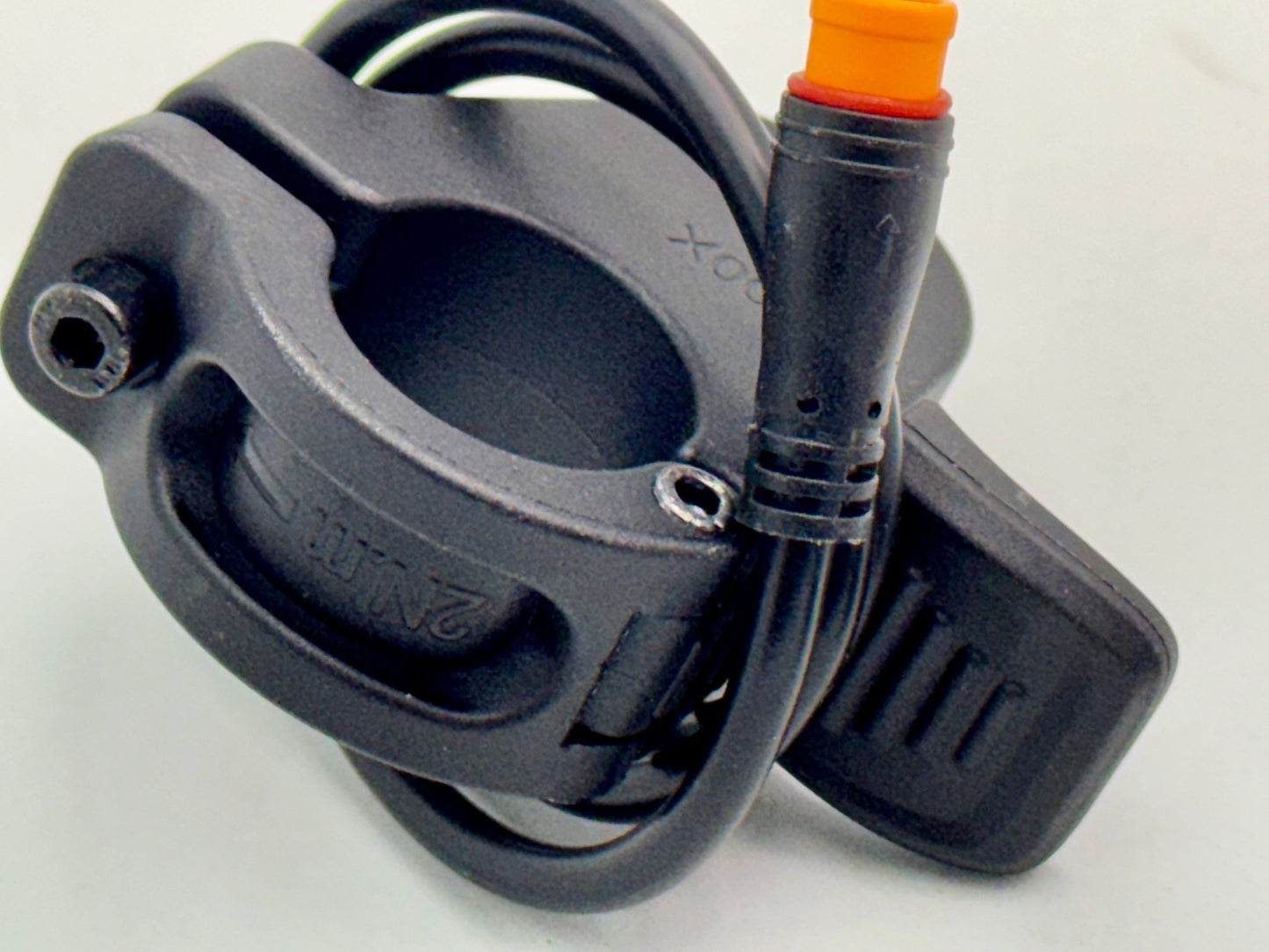

Thumb Throttle x1
Vehicle-specific Adapter Cable x1

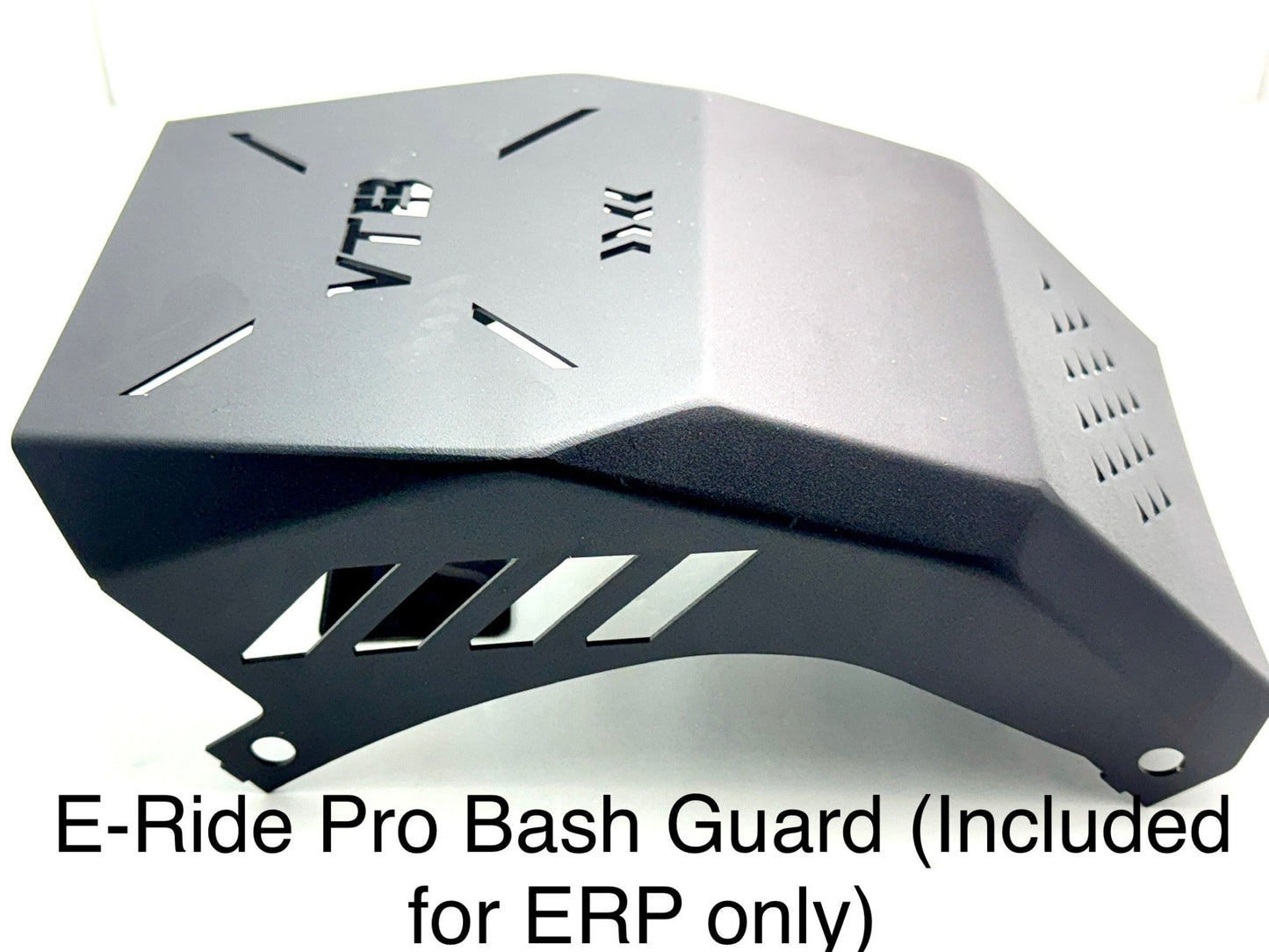

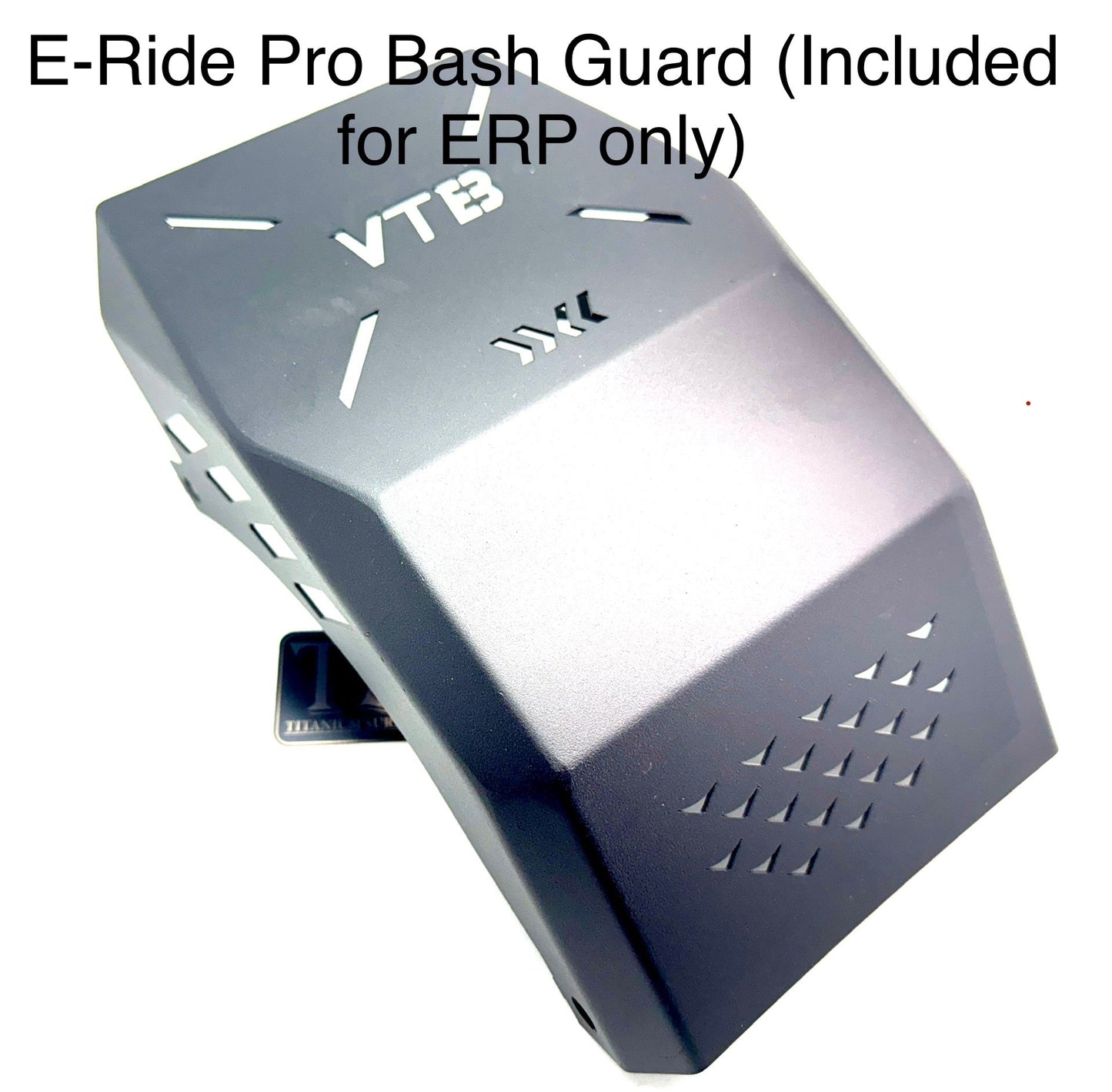

Bash Guard for E-Ride Pro only x1

Compatible Motors:

VTB Beast 28kW
VTB Beast 35kW
Sur-Ron Light Bee Factory
Sur-Ron Ultra Bee Factory
Talaria Sting Factory
79 Bike Falcon Factory
QS165
LTXS
Sotion FW01 Surron
Sotion FW02 Talaria

Compatible Bikes:

Surron LBX/ L1E
Surron Ulta Bee
Segway X-260
Talaria XXX (X3)
Talaria Sting MX3/ MX4
E-Ride Pro SS and S (Includes Bash Guard)
79 Bike Falcon M

VTB App: Real-time status

VTB App: Setup Guidance

VTB App: Basic & Advance Settings
